Custom Tactile Film Control Panel | Membrane Switch Keypad with FPC Tail for Industrial Control
| Share | |
|---|---|
| Categories | Tactile Membrane Switches |
| Brand | KeypadOne |
| Product Type | Tactile film control panel / membrane switch assembly |
| Industry | Industrial control, medical devices, outdoor instrumentation |
| Colour | Black overlay with white printed legends |
| Supply Format | OEM / ODM fully customized builds |
| Sample Policy | Pre-production samples for DFM verification |
| MOQ | Flexible, small trial orders accepted |
| Lead Time | Samples 5-7 days, mass production 12-15 days |
| Packing | ESD bag + foam inserts + export carton |
| Port of Loading | Shenzhen, China |
| Quality System | ISO 9001, IATF 16949, QC 080000 certified factory |

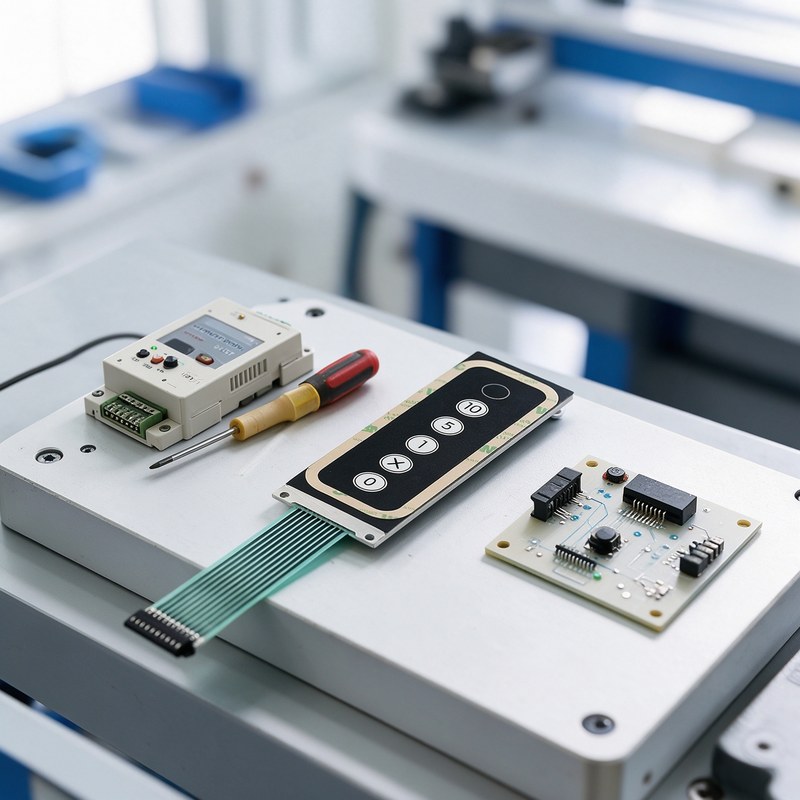

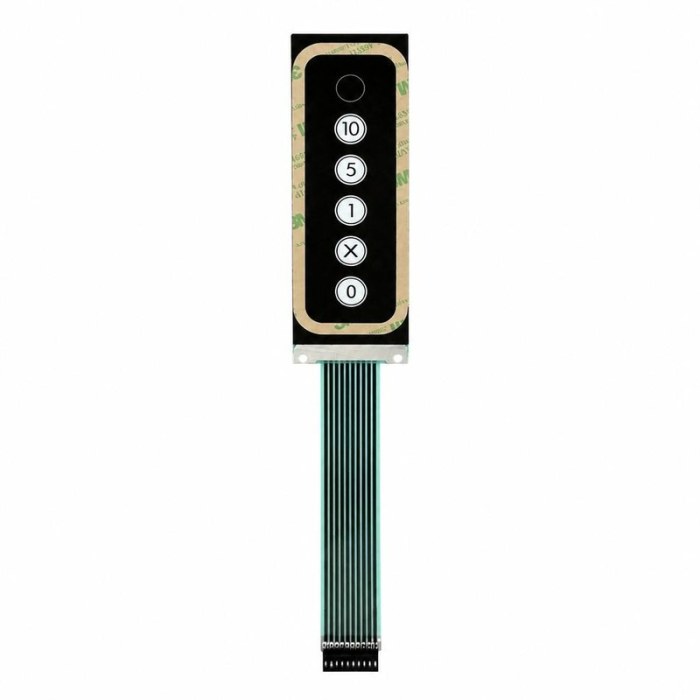

Custom Tactile Film Control Panel with Sealed Overlay and FPC Tail
This custom tactile film control panel is a flexible membrane switch keypad engineered for industrial control equipment. The black PET face panel carries clearly printed numeric and function keys plus an LED status window, while the double-layer flexible conductive circuit inside closes the contact at every press and sends a clean trigger signal to your main board.
The one-piece flat FPC tail with plug-in terminal connects directly to the controller, so there is no soldering or extra wiring on site. Fully sealed against dust, water and oil, the thin panel conforms to flat or slightly curved surfaces, and every detail, from key count and legends to pin definition, backlighting and embossed keys, can be customized to your device.
Product Highlights
Why equipment makers source this tactile film control panel from us.
Sealed Industrial-Grade Build
Enclosed construction resists dust, water and oil, keeping the keypad dependable in industrial, medical and outdoor environments.
Million-Cycle Keystroke Life
Soft, stable tactile feedback rated for more than 1,000,000 actuations, ensuring a consistent key feel across the full service life.
Solder-Free FPC Tail
The integrated flat FPC tail with plug-in terminal plugs straight into the main control board, reducing assembly time and wiring errors.
Flexible OEM / ODM Customization
Key layout, graphics, connector definition, backlight and tactile domes are engineered to your drawings, housing and branding.
Key Selection Specifications
Eight technical points to quickly confirm whether this panel fits your device.
Frequently Asked Questions
What do you need from us to quote a custom panel?
A sketch or drawing with overall dimensions, key layout and legends, tail length and pin definition, plus the target application. Our engineers return DFM feedback and a quotation, usually within one working day.
Can the panel match our housing and brand style?
Yes. Panel shape, size, overlay color, legend graphics, language and surface finish are all customizable, and pre-production samples let you verify fit and key feel before mass production.
What are the MOQ and lead times?
MOQ is flexible and small trial orders are accepted. Samples typically take 5-7 days and mass production 12-15 days after sample approval.
How is the quality of sealed membrane switches controlled?
Panels are produced in our own 20,000 m2 plant with a dust-free screen-printing workshop, 90-person QC team and ISO 9001, IATF 16949 and QC 080000 systems, with SGS-tested materials.
Comparing Suppliers for a Custom Membrane Switch Keypad?
Before awarding the project, it is worth checking real dust-free printing capability, verified actuation life and engineering support from drawing to DFM. Send us your key layout or housing drawing and we will come back with feasibility feedback, a quotation and a clear lead time.
