Custom Non-Tactile Membrane Switch Keypad with LED Indicators and Flexible Circuit Tail | OEM/ODM Manufacturer
| Share | |
|---|---|
| Categories | Tactile Membrane Switches |
| Brand | KeypadOne |
| Product type | Non-tactile membrane switch / flat-key membrane keypad with LED indicators |
| Typical applications | Fans, heaters, air conditioners, audio devices, access keypads, industrial equipment |
| Interface layout | Power, speed level, timer, mode, menu and numeric key sections |
| Customization options | Shape, dimensions, key count, legends, colors, LED positions, tail and connector |
| Material options | PET, PC and customer-specified overlay and circuit materials |
| Connection options | Gold-finger flexible tail or housing connector |
| Visual feedback | LED indicator windows, level bars and status lights |
Custom Non-Tactile Membrane Switch Keypads for OEM Equipment

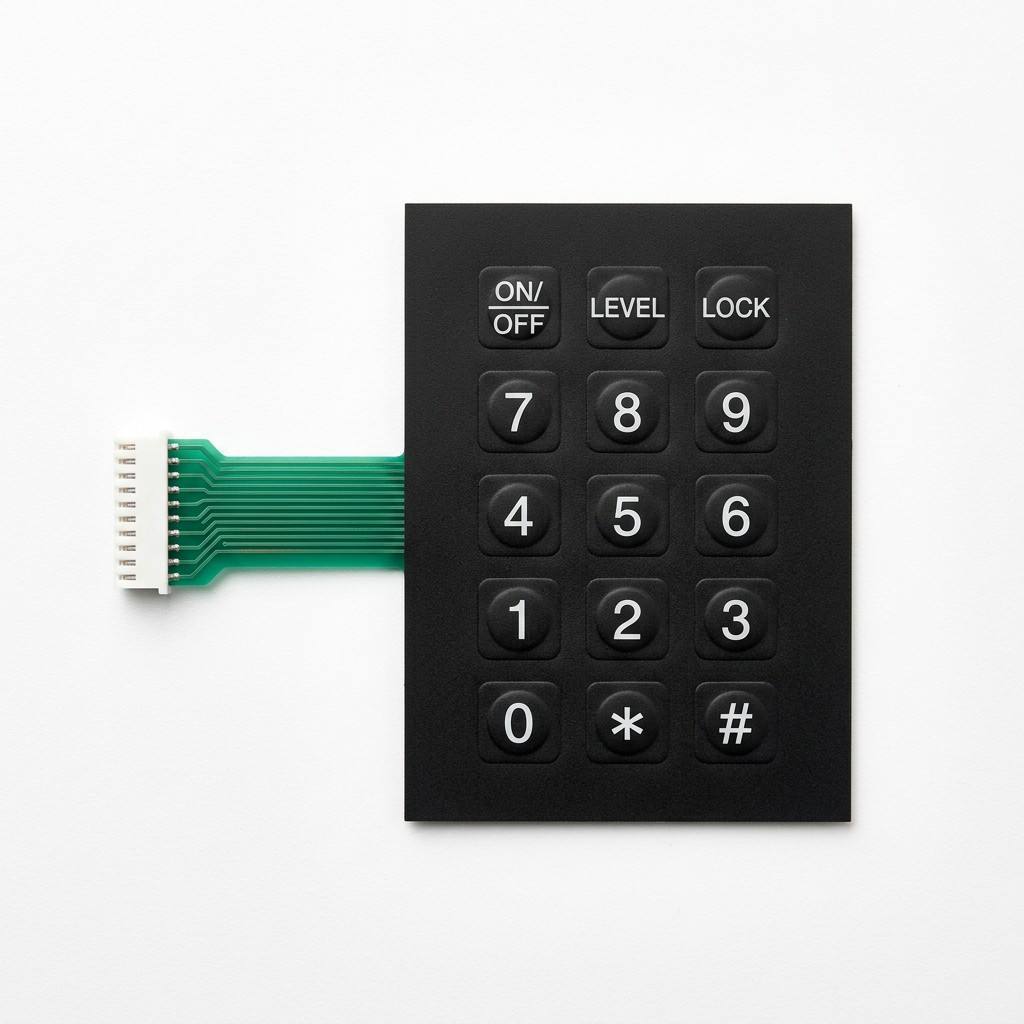

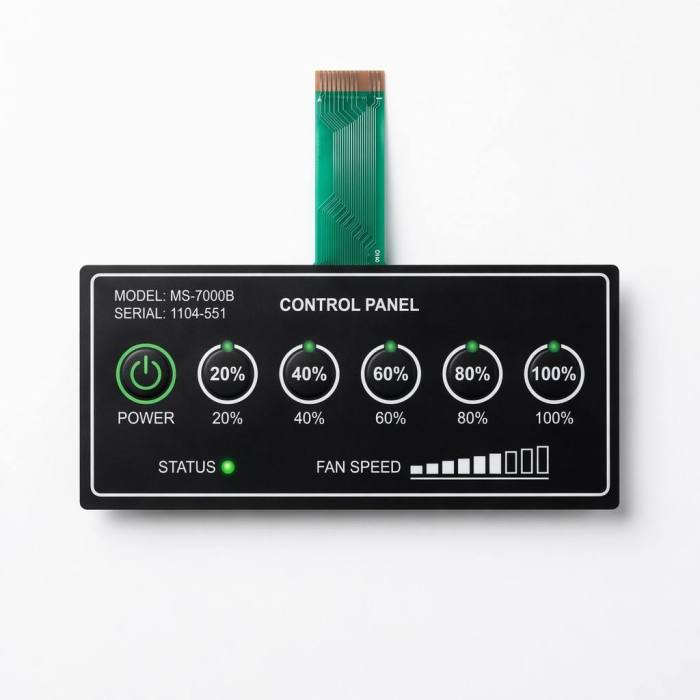

This series of custom non-tactile membrane switch keypads combines a matte black printed overlay, flat touch keys, LED indicator windows and a flexible circuit tail in one slim control module. Clear white legends and green status indicators keep power, speed, mode and numeric functions easy to identify on fans, heaters, climate units, audio devices and access keypads.
As an OEM/ODM membrane switch manufacturer, we build every panel to your drawing: outline, key layout, legends, LED positions, tail length and connector type are all matched to your housing and controller board, so you receive a ready-to-install interface instead of a catalog part.
Why Customize With Us
One supplier for the printed overlay, circuit, indicators and connector of your control panel.
Your Key Layout, Your Legends
Power, speed levels, timer, mode, menu or full numeric keypads can be arranged in any number and position, with text, icons and language printed to your artwork.
LED Indicator Windows
Status lights, level bars and power rings are positioned where your users need feedback, with indicator colors selected for your product.
Flexible Tail and Connector
Tail exit, length and routing are designed around your enclosure, terminated with gold-finger contacts or a housing connector to fit your PCB.
Flexible OEM / ODM
Panel shape, mounting cut-outs, overlay color, surface finish and brand graphics are adapted to each customer project, from samples to volume orders.
Specifications
Core parameters of the custom non-tactile membrane switch series.
Frequently Asked Questions
Can the keypad be customized for our device?
Yes. Outline, dimensions, key count, legends, icons, language, LED positions, tail exit and connector can all be customized according to your drawings and functional requirements.
What is a non-tactile membrane switch?
It is a flat-key membrane switch without metal domes. Keys are activated by a light press on the printed overlay, giving a smooth, easy-to-clean surface and a slim profile.
Can the overlay color and legend colors be changed?
Yes. Overlay color, surface finish, legend colors, indicator colors and brand graphics can be adjusted to match your product design.
Can samples be provided before mass production?
Samples can be arranged for design verification, letting you check appearance, dimensions, key positions, LED alignment and electrical connection before production approval.
Looking for a Custom Membrane Switch Keypad?
Send us your panel artwork or drawing, overall dimensions, key and LED layout, connector requirements and target application. Our engineers will prepare DFM feedback and a quotation.
