What Is a Membrane Switch?

A membrane switch is a thin, flexible, integrated human-machine interface control panel. It is constructed by laminating multiple layers of PET or PC films, silver conductive circuits, spacer adhesive and pressure-sensitive adhesive backing.It combines graphic overlay, keys and conductive circuits into one single assembly. When pressed, the top and bottom conductive layers make contact to turn on the electrical signal; the circuit opens again once pressure is released.Membrane switches can be designed with metal domes to deliver crisp tactile feedback. Optional features include transparent windows for indicators, FPC tail connections, dustproof & waterproof structure.

Types and Applications of Custom Membrane Switches

As a professional manufacturer of HMIs and membrane switches, we provide highly reliable, custom membrane switch solutions.

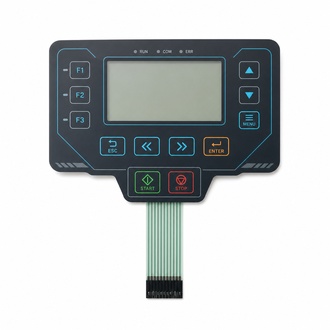

Flat / Convex Membrane Switches

Suitable for instruments and meters with compact designs and smooth surfaces, as well as thin, lightweight control panels that require high levels of dust and water resistance.

Guozai Film Switch

Features a built-in metal spring that provides crisp, mechanical tactile feedback and an exceptionally long service life, making it ideal for industrial machinery and high-frequency operation equipment.

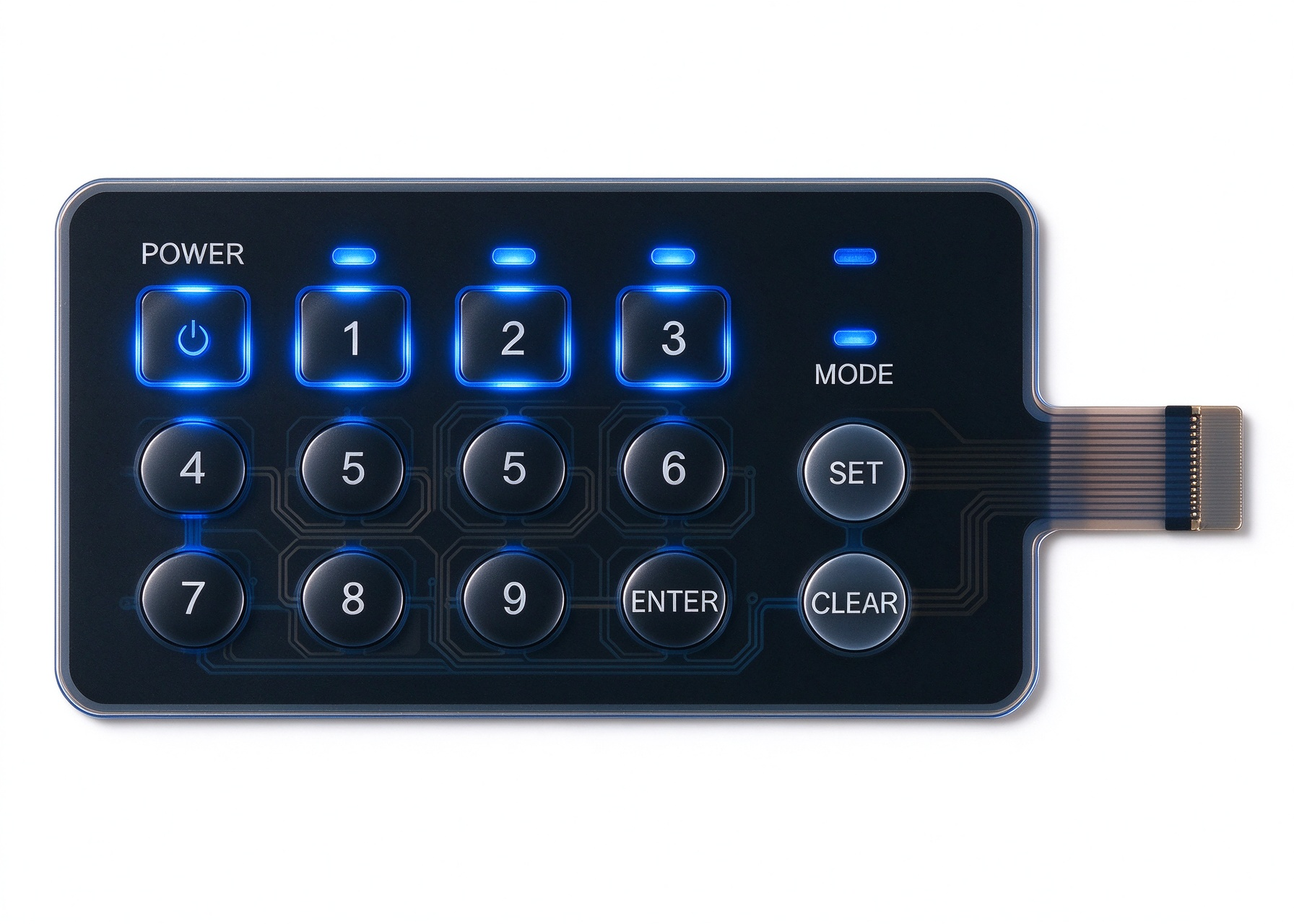

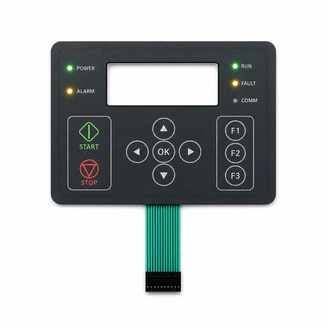

LED Integrated Membrane Switches

Features an integrated ultra-thin surface-mount LED or light-guiding structure, enabling operation in low-light environments and providing clear indicators of operating status.

Every Touch Reveals the Core Strength of Precision Manufacturing

Make every touch clear and distinct

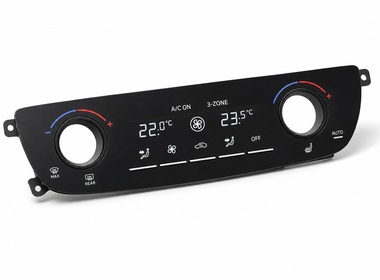

Automotive Membrane Switch

Challenge:The in-vehicle environment is subject to extreme temperature fluctuations ranging from -40°C to +105°C, prolonged exposure to intense direct UV radiation, corrosion from interior cleaning agents, and frequent pressing. It is therefore essential to strictly adhere to the IATF 16949 “zero-defect” standard for automotive applications.

Solution:Using weather-resistant, UV-resistant optical-grade PET film designed specifically for the automotive industry and automotive-grade high-temperature-resistant conductive silver paste, combined with uniform backlight light guidance and a precision tactile switch structure, we provide full-process batch quality traceability and end-to-end DFM engineering validation.

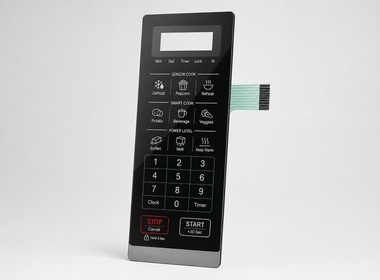

Appliance & Kitchenware Membrane Switch

Challenge:Oven, microwave, and stove control panels are constantly exposed to heavy grease, high humidity, intense heat, and frequent chemical cleaning. Under these conditions, traditional buttons are highly susceptible to water damage, mold growth, fading characters, or grease penetration that causes them to malfunction.

Solution:Featuring a heat-resistant, oil-resistant, and scratch-resistant matte finish combined with a fully enclosed, IP65-rated waterproof adhesive layer system, it incorporates a capacitive touch/slightly raised tactile design and a high-transmittance LED menu display, offering both a slim, integrated appearance and easy-to-clean durability.

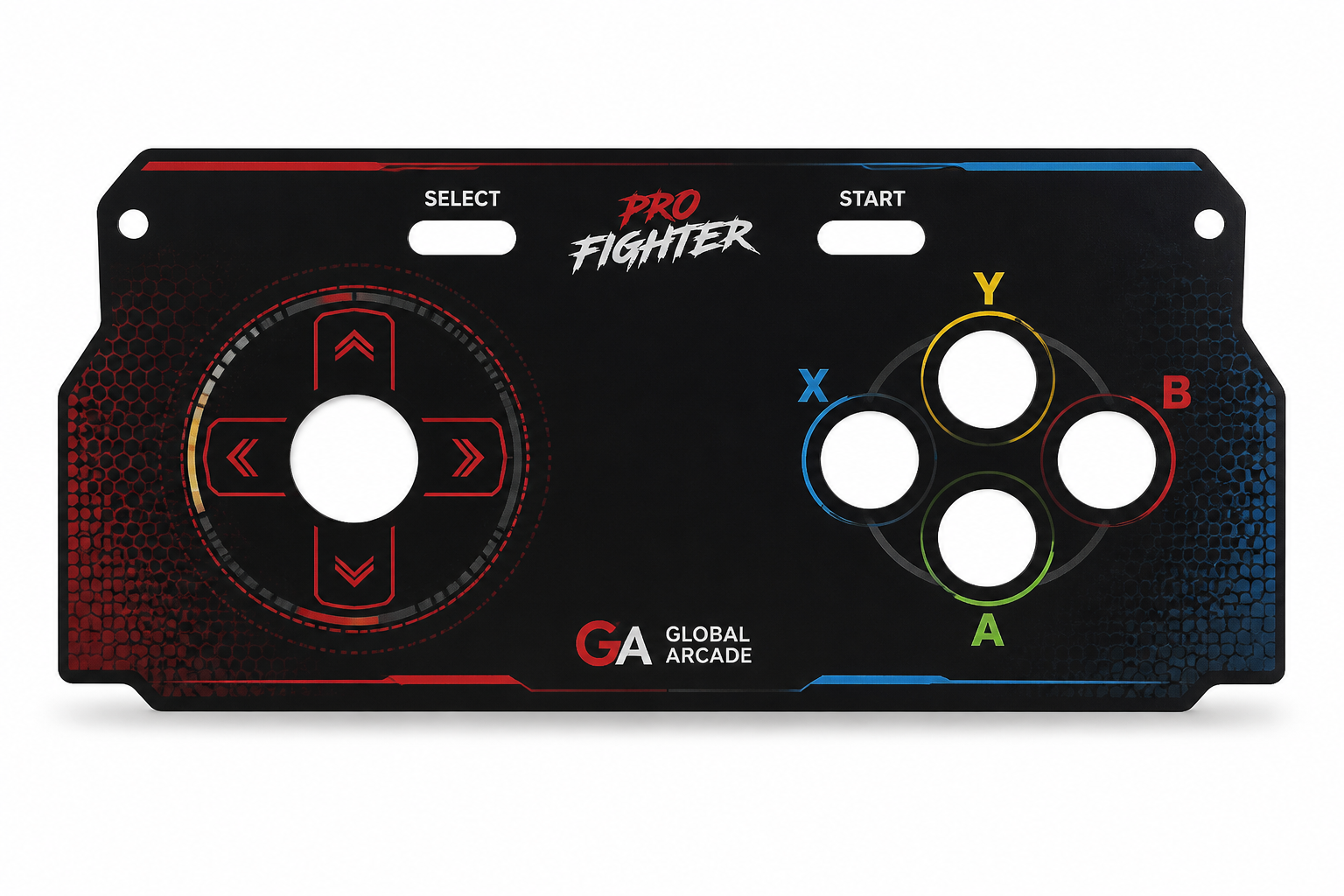

Gaming & Arcade Membrane Switch

Challenge: Gaming devices are subjected to ultra-high-frequency, intense combos from players with lightning-fast reflexes (APM extreme testing), long-term corrosion from the acid and alkali in hand sweat, static electricity generated by friction, and rigorous wear-and-tear tests. They also face extremely high demands for consistent key travel and lag-free activation.

Solution:Featuring a wear-resistant, fingerprint-resistant hardened PET panel and a precision-flattened key structure, it incorporates ultra-low-impedance conductive silver paste and a fatigue-resistant contact layer to ensure a press lifespan of over 3 million cycles without performance degradation. It supports high-fidelity silk-screen printing in a wide range of esports colors and high-precision cutouts for joysticks and keys, delivering an ultra-responsive esports control experience.

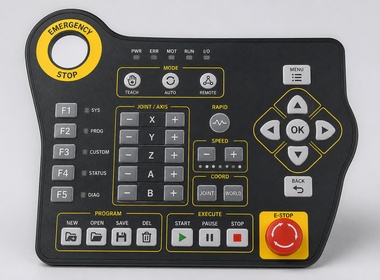

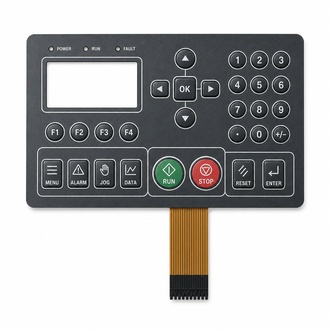

Robotics & Teach Pendant Switch

Challenge:Handheld teach pendants are used in environments where they are subject to impacts and vibrations from drops, machining oil mist and dust, strong electromagnetic interference, and operators wearing thick gloves, making them highly susceptible to wear and tear, unresponsive buttons, or signal drift.

Solution: Featuring tactile, three-dimensional embossed keys and an ergonomic, zoned layout, the keyboard incorporates an industrial-grade EMI/ESD shielding layer and highly resilient, fatigue-resistant contacts. This ensures a crisp, distinct tactile feedback even when operated blindly while wearing gloves, along with long-lasting oil and dust resistance.

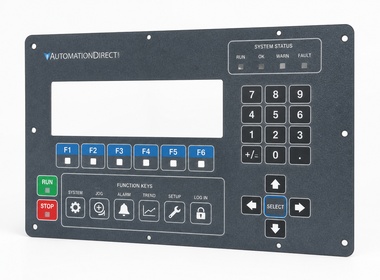

Industrial Control Membrane Switches

Challenge:Industrial automation production lines must withstand 24/7 continuous, high-frequency operation; high temperatures, high humidity, and large temperature fluctuations; outdoor UV exposure; and severe mechanical wear caused by dust.

Solution:Featuring a highly wear-resistant, UV-resistant, matte-finish hardened surface layer and 3M industrial-grade adhesive backing, combined with an IP65/IP68-rated dustproof, waterproof, and explosion-proof laminated structure and corrosion-resistant silver-carbon composite circuitry, it ensures long-term, stable operation over millions of mechanical cycles.

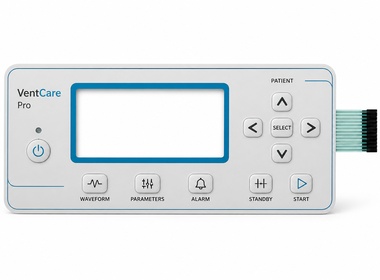

Medical Membrane Switch

Challenge:Medical devices are constantly exposed to frequent wiping with high-concentration chemical disinfectants, penetration by bodily fluids, and stringent sterility requirements. Furthermore, during emergency treatment and precision diagnostics, buttons must be designed to prevent any accidental activation or malfunction.

Solution:Featuring a medical-grade, antimicrobial, and chemical-resistant PET coating and an IP67 fully sealed, seamless-edge design, combined with enclosed, oxidation-resistant conductive silver paste circuits and precision metal domes, it provides sensitive tactile feedback for over 1 million presses and a high-transmittance, distortion-free LCD window.

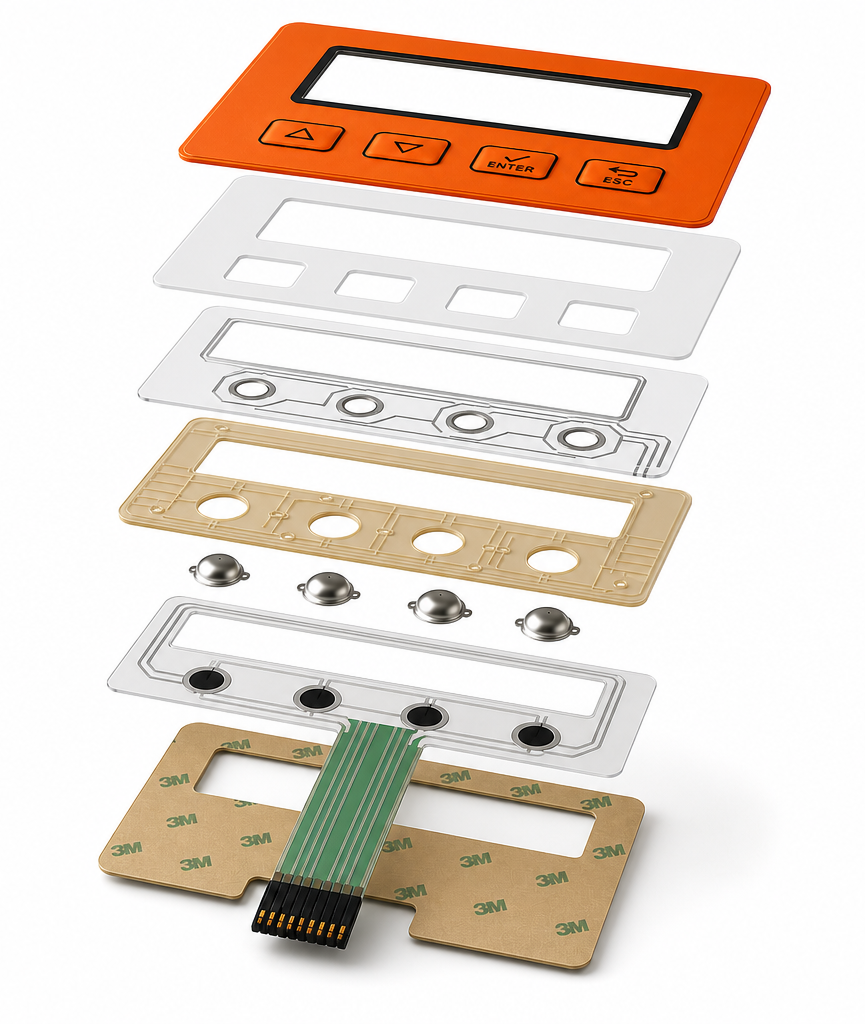

01
Graphic Overlay
Located on the outermost surface of the product, it serves as the direct contact surface for users and features printed characters and icons. It is designed to be wear- and scratch-resistant, dust- and grease-resistant, and to enhance the product’s appearance.
02
Adhesive Layer
It is applied to the back of the panel to bond the panel to the top circuit layer, while also sealing it to prevent dust and moisture from seeping into the circuit area.
03
Top Circuit Layer
Supports the upper conductive circuit and the upper contact; features a cutout for the heating element; transmits electrical signals to the upper section.
04
Insulating Layer
Positioned between the upper and lower circuit boards, it normally isolates the two layers of circuitry to prevent short circuits; the window accommodates the switch plate, and the vent holes eliminate air pockets to ensure the buttons have a responsive feel when pressed.
05
Guozai Slices
Place it in the window of the insulating rubber; pressing it causes it to collapse, closing the circuit and providing a “click” tactile feedback; releasing it causes it to spring back, breaking the circuit.
06
Lower Circuit Layer
It carries the lower conductive traces and lower contacts, collects button signals, and transmits them to the motherboard via an FPC cable; the carbon paste layer suppresses silver migration and enhances the wear resistance of the contacts.
07
Adhesive Backing Layer
Located at the very bottom of the entire membrane switch assembly, it secures the switch module to the device housing and provides reliable adhesion.
