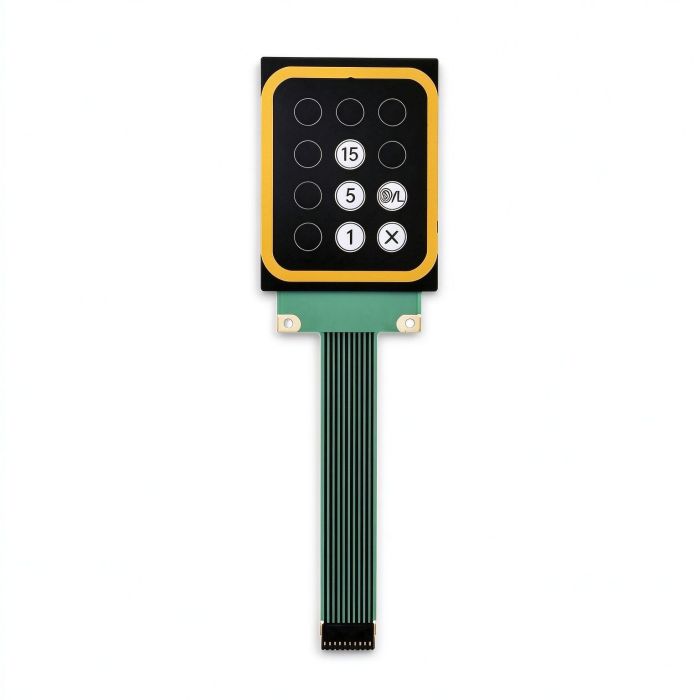

Custom Membrane Switch Keypad with FPC Tail & Mounting Holes
| Share | |
|---|---|
| Categories | Tactile Membrane Switches |
| Brand | KeypadOne |
| Material | Autotex Matte PET / PC Film + Copper FPC / FR4 Stiffener |
| Key Switch Type | Tactile Metal Dome with Circular Embossing |
| Circuit & Tail | Extended Flexible FPC Tail with Gold-Plated Connector |
| Mounting Type | Rigid PCB Flange with Screw Mounting Holes + 3M 467/468 Adhesive |
| Ingress Protection | IP65 / IP67 Waterproof, Dustproof & Chemical Resistant |
| Operating Life | 1,000,000+ Actuations per Key |
| Electrical Rating | Max. 35V DC, Max. 100mA, Contact Resistance Below 10 Ohm, Insulation Above 100 MOhm |
| Operating Temp | -20°C to +70°C (-4°F to +158°F) |
| Certifications | ISO9001, IATF16949, RoHS, REACH, UL |
| Service Mode | OEM/ODM Customization (Graphics, Layout, Tail Length & Pinout) |
| MOQ | 10 PCS (Flexible for Prototyping) |
| Lead Time | Sample 5-7 Working Days, Mass Production 12-15 Working Days |
Custom Membrane Switch Keypad with FPC Tail for Industrial Control Systems
As an ISO9001 and IATF16949 certified manufacturer, we engineer custom membrane switch keypads with extended FPC tails for industrial control consoles, medical equipment, electronic instruments and timer controllers.

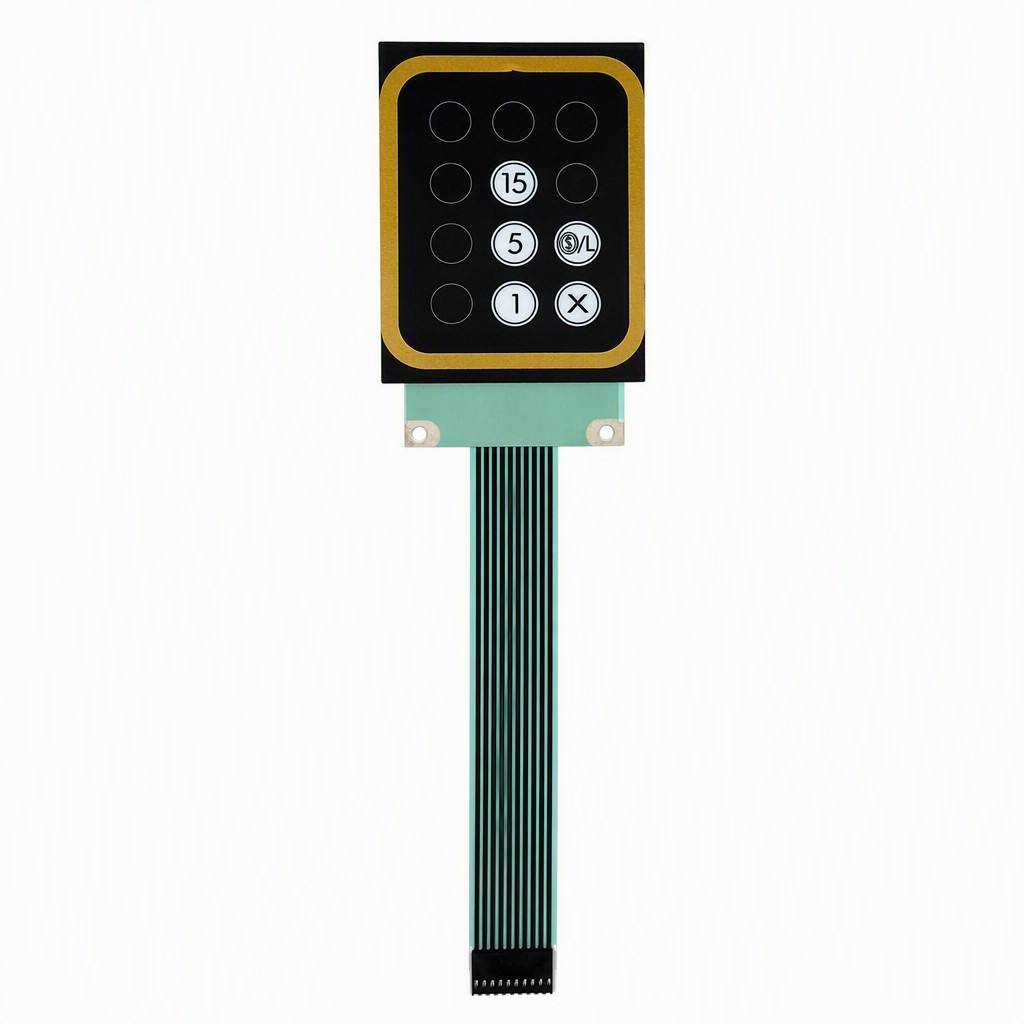

This tactile membrane switch panel combines a matte black Autotex PET overlay with a gold accent border, circular embossed keys with metal domes, a rigid PCB mounting flange and a multi-trace FPC tail — sealed to IP65 and rated for over 1,000,000 actuations. Full OEM/ODM support from DFM review and tooling to mass production.
Product Highlights
Built to stay reliable in demanding industrial environments.
Extended FPC Tail
Multi-trace copper tail with stiffeners for low contact resistance and easy routing in tight enclosures.
Rigid PCB Mounting Flange
FR-4 flange with dual precision screw holes for secure, correctly aligned panel fixing.
Tactile Metal Dome Keys
Circular embossed keys with stainless steel domes deliver a crisp snap feel, cycle after cycle.
IP65 Autotex PET Overlay
Reverse-printed Autotex film resists wear, UV and solvents, sealed with 3M adhesive.
Specifications
Key parameters of the custom membrane switch keypad.
Frequently Asked Questions
Can graphics, key markings and FPC tail length be customized?
Yes. Artwork, Pantone/RAL colors, key shapes, embossing, tail length and pinout are all manufactured to your drawings.
What files do you need for a DFM review and quotation?
2D/3D drawings (CAD / DXF / DWG / STP), vector artwork (AI / PDF / CDR), pinout or schematic and target quantity. DFM feedback within 24 hours.
What are the typical lead times?
Tooling drawings 1–2 working days, prototype samples 5–7 working days, mass production 12–15 working days. Trial runs start from 10 PCS.
How does the rigid PCB flange help assembly?
It keeps the switch rigid and perfectly aligned during screw fixing, preventing warpage under repeated actuation.
Need a Custom Membrane Switch Keypad for Your Equipment?
Send your drawings, artwork and target quantity — our engineers reply with DFM feedback and a quotation within 24 hours.
