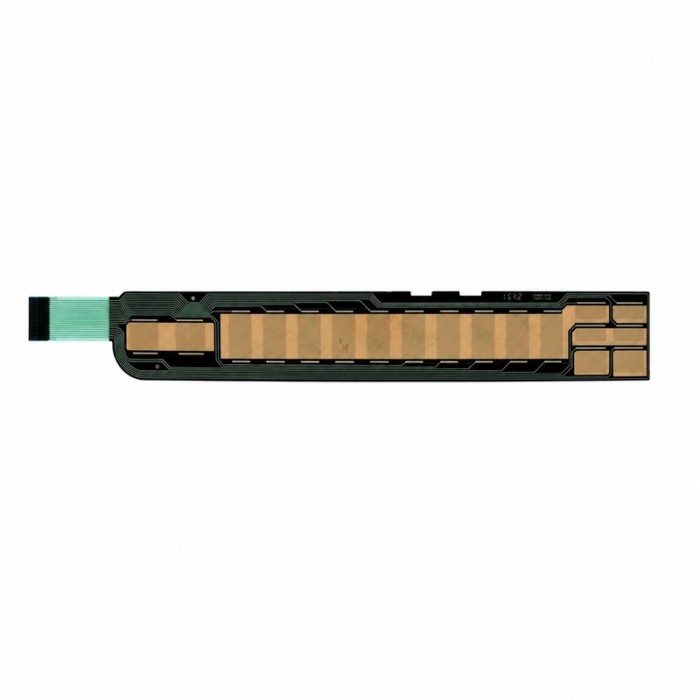

Custom Flexible Silver Ink Conductive Circuit Layer for Membrane Switches

Share
Categories	Single-layer circuit board
Brand	KeypadOne
Product type	Custom flexible conductive circuit layer / silver-ink trace / PET single-layer flexible circuit
Typical applications	Membrane switches, touch panels, smart appliances, medical devices, industrial HMI
Conductive material	Silver paste (Ag) screen-printed traces with low resistance and stable signal transmission
Substrate options	PET, PI (polyimide) and customer-specified flexible film substrates
Customization options	Trace layout, electrode shape, circuit routing, connector type, dimensions and resistance values
Key features	Fine-line printing down to 0.15 mm, excellent adhesion, moisture and heat resistance, RoHS compliant

Contact Now

Detail Information

Custom Flexible Conductive Circuit Layers for Precision Touch Interfaces

This custom flexible silver ink conductive circuit layer is engineered as the core signal path for modern membrane switches and capacitive touch panels. Screen-printed with high-purity silver paste on flexible PET film, the trace layout delivers consistent low-resistance conductivity while maintaining the bendability required for curved or compact housings. Every electrode pattern, via hole and connector pad is positioned to match your exact touch-button arrangement and device geometry.

As a dedicated OEM/ODM flexible printed circuit manufacturer, we build each conductive layer from your CAD or Gerber data. Trace width, pitch, electrode shape, routing path and termination style are fully customizable. The result is a ready-to-laminate circuit layer that integrates cleanly with graphic overlays, dome arrays and controller boards for home appliances, medical equipment and industrial HMI systems.

Custom flexible silver ink conductive circuit layer on PET substrate

Product Highlights

Precision-printed conductive traces that bring reliable performance to flexible touch interfaces.

Low-Resistance Silver Traces

High-purity silver paste screen printing achieves stable conductivity and low contact resistance for responsive touch signals.

Fully Custom Layout

Trace routing, electrode geometry, pitch and connector pads are tailored to your PCB or controller pinout.

Thin & Flexible PET Base

The PET substrate keeps the circuit layer thin, lightweight and bendable for integration into compact or curved panels.

Production-Ready Quality

RoHS-compliant materials, moisture-resistant traces and ISO-level process control ensure repeatable batch quality.

Specifications

Core parameters of the custom flexible conductive circuit layer series.

Product TypeCustom flexible conductive circuit layer / silver-ink printed trace / PET-based single-layer flexible circuit

Typical ApplicationsMembrane switches, touch control panels, smart home appliances, medical devices, industrial HMI

Conductive MaterialSilver paste (Ag) screen-printed traces with low resistance and stable signal transmission

Substrate OptionsPET, PI (polyimide) and customer-specified flexible film substrates

Customization OptionsTrace layout, electrode shape, circuit routing, connector type, dimensions and resistance values

Key FeaturesFine-line printing down to 0.15 mm, excellent adhesion, moisture and heat resistance, RoHS compliant

Minimum Line Width0.15 mm trace width depending on design complexity and substrate specification

Development ServicesOne-stop OEM/ODM customization from circuit layout to sample validation

Frequently Asked Questions

Can the trace layout be customized for our membrane switch design?

Yes. We work from your CAD drawing, Gerber file or physical sample to define trace routing, electrode size, pitch, via placement and connector pad arrangement. All dimensions and circuit paths are fully customizable.

Is this circuit layer suitable for OEM and ODM projects?

Yes. The manufacturing process is built around OEM/ODM requirements, including custom layer stack-up, integration with graphic overlays and dome arrays, and batch consistency for mass production.

What substrate materials are available besides PET?

PI (polyimide) and other customer-specified flexible films can be selected based on temperature rating, bending cycles and chemical-resistance requirements for your application.

Can samples be provided before mass production?

Samples can be prepared for electrical validation, dimensional checking and integration testing, giving you confidence in conductivity, adhesion and fit before production approval.

Need a Custom Flexible Conductive Circuit Layer?

Share your trace layout, electrode arrangement, substrate preference and target application. Our engineers will review manufacturability and provide DFM feedback with a quotation.
