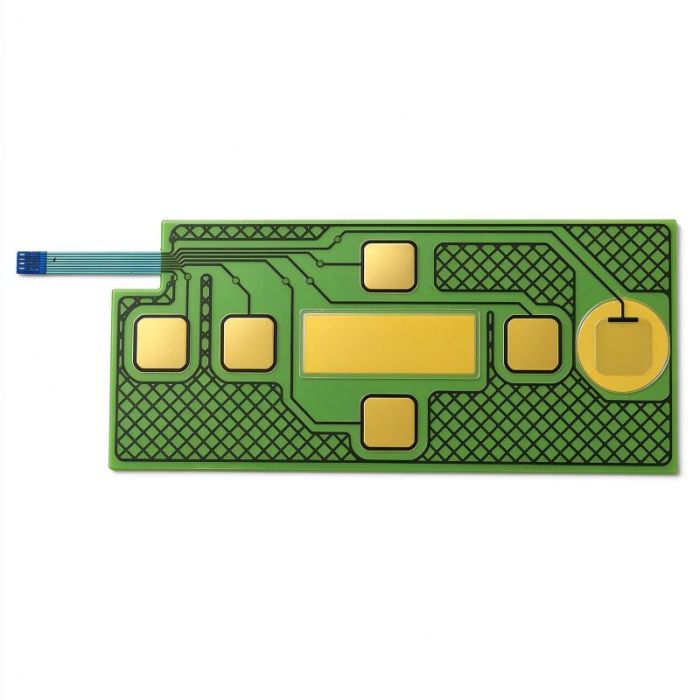

Custom Single Layer Membrane Switch Circuit Board | OEM/ODM Flexible PCB Manufacturer | KeypadOne

Share
Categories	Single-layer circuit board
Brand	KeypadOne
Product Type	Single-layer membrane switch circuit board / flexible printed circuit
Substrate Material	PET film with optional PI for high-temperature applications
Conductive Layer	Silver ink printed circuit or copper etched circuit
Contact Pads	Gold-plated or carbon-coated pads according to design
Tail / Connector	FPC/FFC tail, length, width and pinout customizable
Adhesive Backing	3M high-tack pressure-sensitive adhesive for clean mounting
Certifications	ISO9001, IATF16949, RoHS, REACH
Customization	OEM/ODM artwork, layout, tail and pinout
MOQ	10 PCS
Lead Time	Sample 5-7 working days, mass production 12-15 working days

Contact Now

Detail Information

Custom Single Layer Membrane Switch Circuit Boards for Flexible HMI Solutions

This custom single-layer membrane switch circuit board is engineered for brands that need a thin, reliable and cost-effective flexible circuit layer. Built on a PET substrate with silver-ink or copper conductive traces, it delivers stable electrical performance while keeping the overall assembly slim and lightweight.

As an ISO9001 and IATF16949 certified OEM/ODM manufacturer, KeypadOne customizes every layer to your drawings: trace layout, pad size, tail position, connector pinout and overall dimensions. Send us your Gerber or CAD files and our engineers will provide DFM feedback plus a fast quotation.

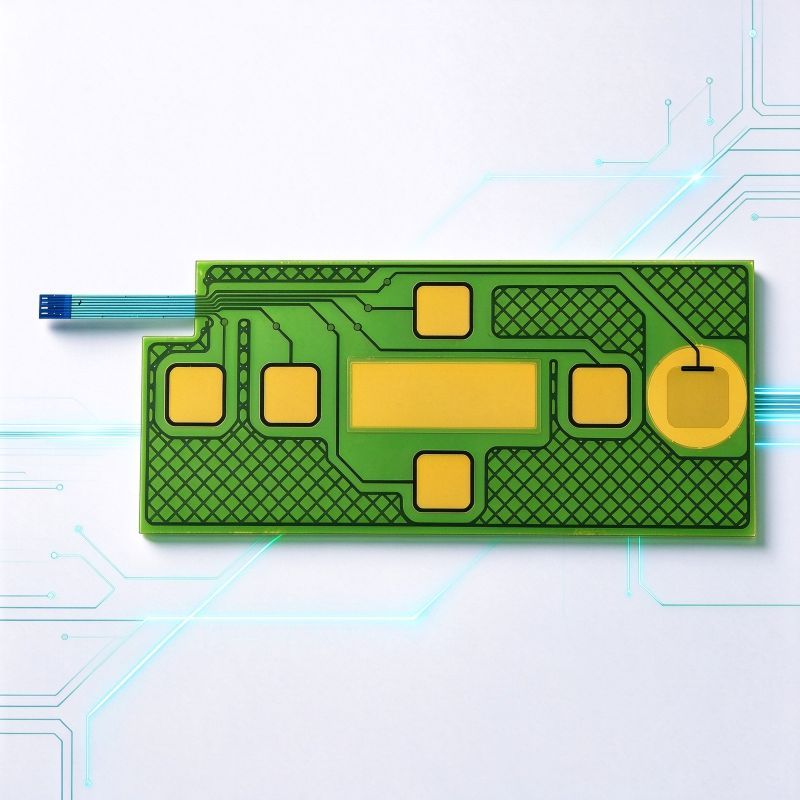

Custom single-layer membrane switch circuit boards featuring a PET substrate and conductive traces

Product Highlights

Flexible circuit advantages that simplify your membrane switch assembly.

Custom Circuit Layout

Pads, traces, spacing and tail routing are produced exactly to your electrical schematic and mechanical drawing.

Flexible FPC/FFC Tail

Extended tail with customized length, stiffener and pinout simplifies connection to your main PCB or controller.

Certified Manufacturing

Produced under ISO9001 and IATF16949 quality systems with 100% electrical testing before shipment.

Fast Turnaround

Prototypes ready in 5-7 working days and mass production in 12-15 working days to keep your project on schedule.

Specifications

Core parameters of the single-layer membrane switch circuit board.

Product TypeSingle-layer membrane switch circuit board / flexible printed circuit

Substrate MaterialPET film with optional PI for high-temperature applications

Conductive LayerSilver ink printed circuit or copper etched circuit

Contact PadsGold-plated or carbon-coated pads according to design

Tail / ConnectorFPC/FFC tail, length, width and pinout customizable

Adhesive Backing3M high-tack pressure-sensitive adhesive for clean mounting

CertificationsISO9001, IATF16949, RoHS, REACH

CustomizationOEM/ODM artwork, layout, tail and pinout

Frequently Asked Questions

Can the circuit layout be fully customized?

Yes. Trace routing, pad size and position, tail length and connector pinout are all built to your Gerber, DXF or schematic.

What design files do you need for a quotation?

Please send your 2D/3D drawings, circuit schematic or Gerber, quantity and target application. We reply with DFM feedback within 24 hours.

What is the typical lead time?

Engineering review takes 1-2 working days, prototypes 5-7 working days and mass production 12-15 working days after drawing approval.

Do you support low-volume prototyping?

Yes. Our MOQ starts from 10 PCS, making us flexible for prototypes and small trial orders before scaling up.

Need a Custom Single Layer Membrane Switch Circuit Board?

Send us your drawings and quantity — our engineers will prepare DFM feedback and a competitive quotation.
