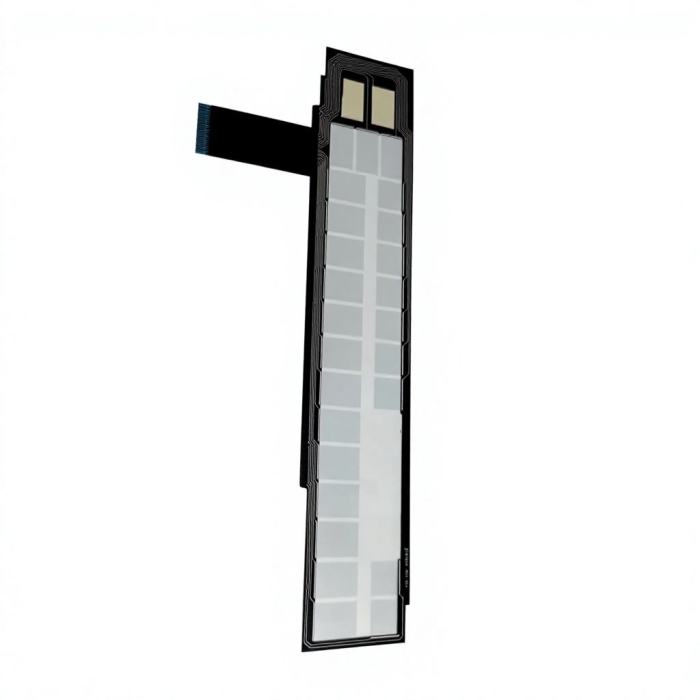

Custom Non-Tactile Membrane Switch with Flexible Tail - OEM/ODM Thin-Film Control Panel Manufacturer
| Share | |
|---|---|
| Categories | Non-tactile membrane switches |
| Brand | KeypadOne |
| Product type | Non-tactile membrane switch / thin-film control panel |
| Structure | Black flexible film with printed silver circuit, translucent window zones and flexible tail |
| Connection | Flexible tail with stiffened contact fingers |
| Typical applications | Industrial control equipment, home appliances, instruments and OEM devices |
| Customization options | Outline, dimensions, window layout, keys, circuit routing, tail length and pitch |
| Material options | PET, PI and customer-specified film materials |
Custom Non-Tactile Membrane Switch Panels for OEM Equipment

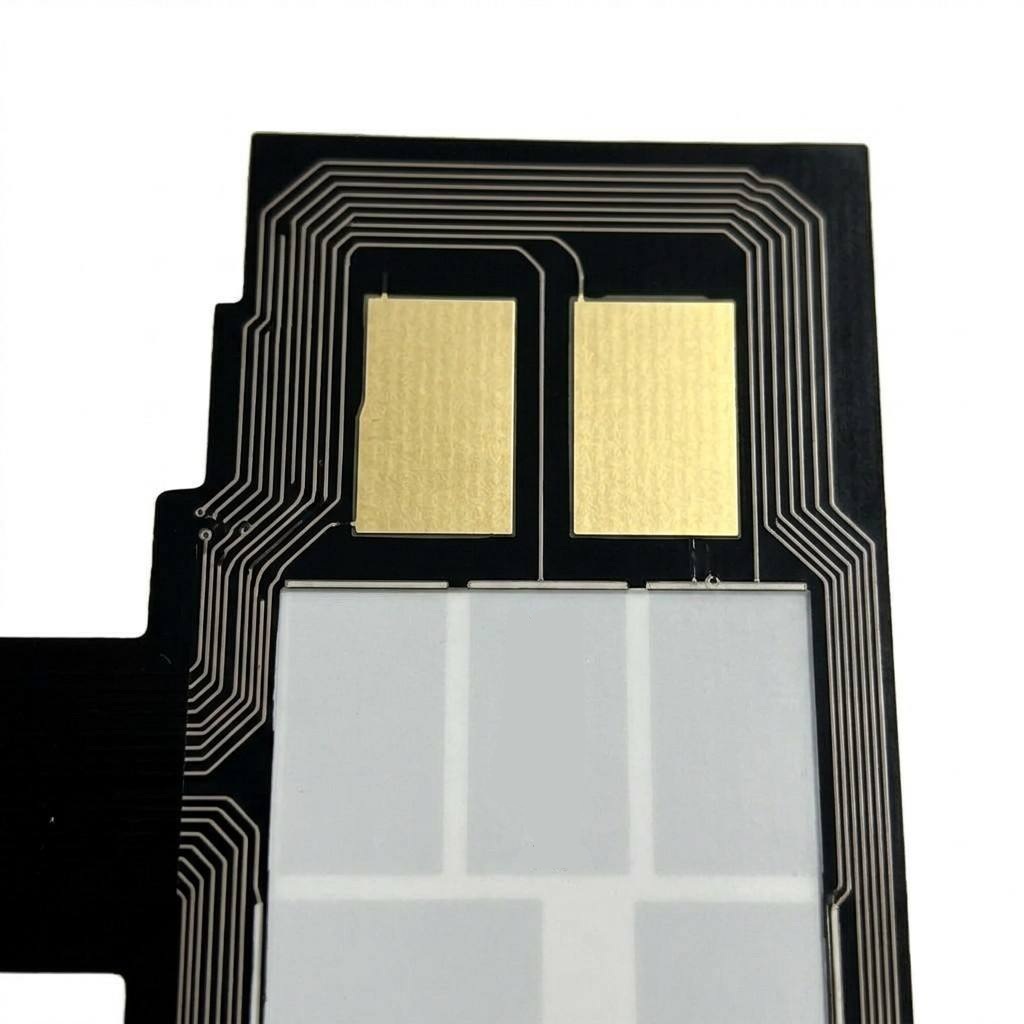

This custom non-tactile membrane switch is built on a black flexible film with precision-printed silver circuitry, translucent window zones, contact pads and an integrated flexible tail. The flat, low-profile construction gives your device a clean front surface without dome travel, ideal for slim and sealed control interfaces.
As a one-stop OEM/ODM thin-film control panel manufacturer, we tailor the outline, window layout, circuit routing, contact pads and tail exit to your housing and controller board, so the panel fits straight into your assembly line.
Product Highlights
A thin, flexible control interface engineered around your device design.
Precision Silver Circuit Printing
Fine silver traces are screen-printed and routed around the window zones for stable conductivity in a thin, flexible layer.
Translucent Window Zones
Light-diffusing window segments can be arranged to match your indicator, backlight or display areas.
Integrated Flexible Tail
A flexible tail with stiffened contact fingers simplifies connection to your PCB; tail length, pitch and exit position are customizable.
Flexible OEM / ODM
Outline, key and window layout, graphics, circuit design and connector interface are fully customized to your drawings.
Specifications
Core parameters of the custom non-tactile membrane switch.
Frequently Asked Questions
Can this membrane switch be customized to our drawings?
Yes. The outline, dimensions, window zones, key positions, circuit routing, contact pads and tail exit can all be built according to your drawings and functional requirements.
What is the difference between non-tactile and tactile membrane switches?
A non-tactile switch has no metal dome, so it keeps a flat, thin surface and quiet operation. A tactile version adds dome feedback; we can recommend the right type for your device.
Is this panel suitable for OEM and ODM projects?
Yes. We coordinate the panel with your housing, controller board and connector, and can adapt graphics, colors and layout to your brand.
Can samples be provided before mass production?
Samples can be arranged for design verification, letting you check outline, window alignment, circuit function and tail connection before production approval.
Looking for a Custom Non-Tactile Membrane Switch Solution?
Send us your drawing or sample, overall dimensions, window and key layout, connector type and target application. Our engineers will prepare DFM feedback and a quotation.
