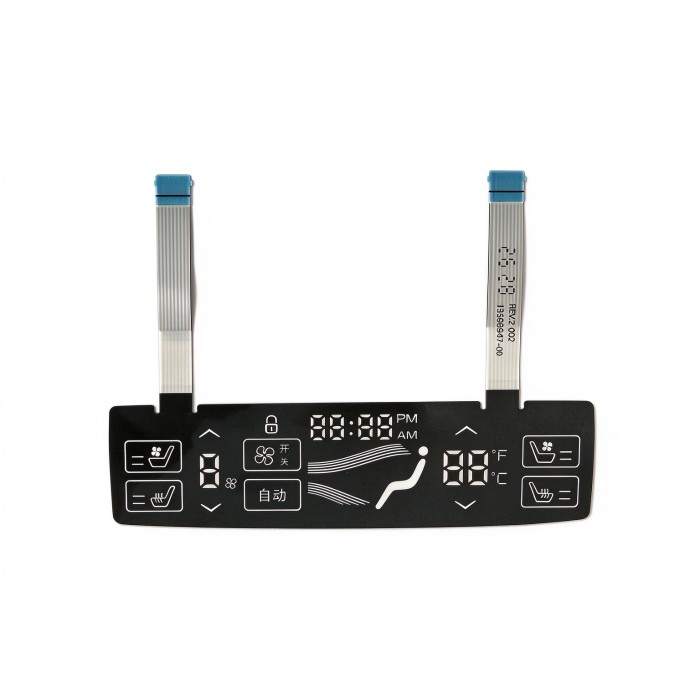

OEM ODM Custom Automotive Seat Control Membrane Switch with FPC Tail

Share
Categories	Non-tactile membrane switches
Brand	KeypadOne
Material	Autotex Matte PET / PC Overlay + Copper FPC Circuit
Application	Automotive Seat Heating & Cooling, Climate Control, Vehicle HMI
Adhesive	3M or Equivalent Automotive-Grade Tape
Certifications	IATF16949, ISO9001, RoHS, REACH, UL
Prototype Lead Time	5 - 7 Working Days
Customization	OEM/ODM
MOQ	10PCS

Contact Now

Detail Information

Custom Automotive Seat Control Membrane Switch for Vehicle Climate Systems

As an IATF16949 and ISO9001 certified manufacturer specializing in precision printing and human-machine interface (HMI) solutions, we engineer custom automotive seat control membrane switch assemblies tailored for vehicle climate control, seat heating and ventilation, and interior console systems.

This custom automotive seat control membrane switch integrates dual flexible printed circuit (FPC) tails, clear digital display windows (for clock, fan level, and temperature status), and automotive-grade graphic overlays. Designed to withstand extreme vehicle cabin temperature fluctuations and continuous tactile operation, our membrane switches offer superior tactile response, IP65 waterproof sealing, and long-term electrical reliability. We provide end-to-end OEM/ODM customization from DFM engineering and tooling to mass production.

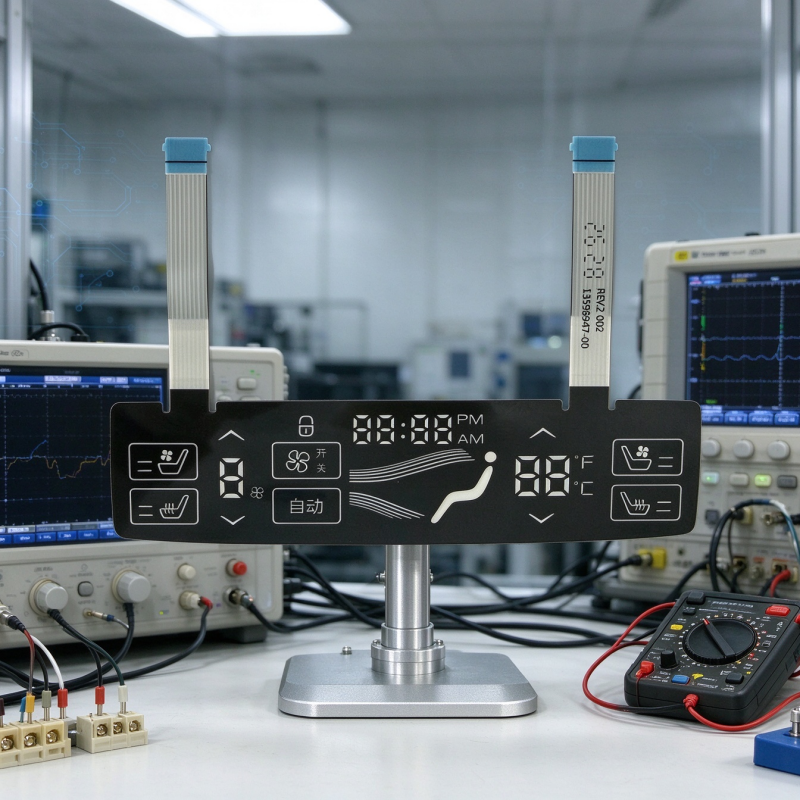

Custom automotive seat control membrane switch with dual FPC tails and clear digital display windows

Product Highlights

Key performance features engineered for reliable automotive seat control interfaces.

Optical Clear Digital & LED Display Windows

High-transparency anti-glare display cutouts ensure crisp visibility for 7-segment digital temperature (°F/°C), clock (AM/PM), and status indicators without optical distortion.

Dual High-Reliability FPC Circuit Tails

Dual flexible printed circuit (FPC) tails with reinforced stiffeners provide low contact resistance, excellent bending endurance, and compact routing into tight automotive console housings.

Automotive-Grade Environmental Sealing

Multi-layer sealed structure laminated with high-performance 3M adhesive delivers IP65 ingress protection against moisture, dust, spilled liquids, and cleaning agents.

Precision Anti-UV & Scratch-Resistant Overlay

Subsurface silk-screen printing on premium Autotex PET/PC film ensures graphic symbols and colors never wear off under continuous UV exposure and heavy daily use.

Technical Specifications

Core technical parameters of the custom automotive seat control membrane switch.

Overlay Material & Surface ProcessAutomotive-grade Autotex matte anti-scratch PET / optical-grade PC film with subsurface screen printing; resistant to UV aging, high-temperature sun exposure, sweat and cleaning-agent corrosion

Circuit Layer & Tail InterfaceDual-row FPC flexible copper foil circuit (Flexible Printed Circuit) with reinforced stiffeners; low contact resistance, excellent bending endurance, fits tight routing inside automotive center console / armrest assemblies

Display Window OpticsHigh light transmittance (≥ 90%) anti-glare optical clear window designed for LED/LCD and 7-segment digital tubes (clock, fan level, temperature 88°F/°C); crisp characters with no color shift or ghosting

Sealing & Protection RatingMulti-layer closed-cell encapsulation reaching IP65 water and dust protection; prevents short circuits from splashed liquids (drinks, rain) and dust intrusion inside the vehicle

Assembly Adhesive3M or equivalent high-tack automotive-grade pressure-sensitive double-sided tape; high peel strength and durable adhesion to plastic injection-molded housings and metal shells, no edge lifting under long-term heat

Automotive-Grade Wide Temperature & Weather Resistance
The membrane switch panel withstands extreme cabin conditions such as freezing winters and intense summer heat. It maintains stable touch performance under sharp temperature variations without failure over long-term service.

Frequently Asked Questions

What makes your membrane switches suitable for automotive applications?

Our automotive membrane switches are manufactured under strict IATF 16949 and ISO 9001 quality management systems. We use automotive-grade PET/PC laminates, highly flexible FPC copper foil circuits, and 3M high-temperature adhesives—materials specifically designed to operate reliably in the high-temperature, high-humidity environments typical of automotive applications.

Can you customize the graphic layout, icons, and dual FPC tail pinouts?

Yes, 100% of our production is custom OEM/ODM. You can provide your CAD (DXF/DWG), vector artwork (AI/PDF), and schematic/pinout requirements. Our engineering team provides full DFM (Design for Manufacturability) support, custom tooling, backlighting integration, and custom connector layouts.

What is the typical lead time for custom automotive switch prototypes and mass production?

Engineering DFM Review & Tooling Drawing: 1-2 working days. Prototype / First Article Samples: 5-7 working days after drawing approval. Mass Production: 12-15 working days depending on order volume and project complexity.

What design files and technical parameters are required for a quotation?

Please provide your 2D/3D dimensional drawings, graphic artwork with Pantone/RAL color codes, electrical schematic / FPC pinout definition, operating environment requirements, and estimated annual usage (EAU). We will provide a formal engineering review and quotation within 24 hours.

Build Your Custom Automotive Seat Control Membrane Switch Solution

17-year membrane switch source factory, supporting automotive-grade customization, one-stop delivery from prototyping to mass production.
