Custom Dual-Ring LED Array FPC Board for Marquee Lighting - OEM Flexible PCB
| Share | |
|---|---|
| Categories | Multilayer Circuit Board |
| Brand | KeypadOne |
| Product type | Custom dual-ring LED array FPC for LED bead mounting |
| Typical applications | Marquee lighting, decorative LED rings, automotive ambient lighting, signage backlighting |
| Circuit layout | Dual-ring with gold-plated LED pads, bridge wiring, and steel stiffener with mounting holes |
| Material options | PI substrate with black solder mask; custom materials available on request |
| Structural features | Ultra-thin bendable FPC, gold-plated pads, steel stiffener for fixation and welding |
| Customization options | Ring diameter, pad density, trace routing, stiffener size, connector type, shape |

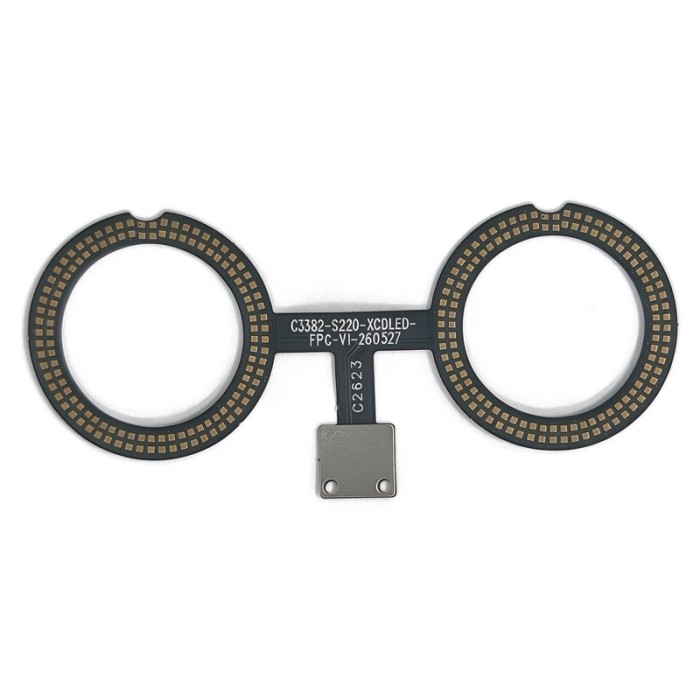

Custom Dual-Ring LED Array FPC for Marquee and Decorative Lighting
This custom dual-ring LED array FPC board is engineered for marquee lighting, decorative LED rings, and ambient illumination systems. Built on a PI (polyimide) substrate with a black solder mask, the circuit combines a lightweight, bendable form factor with reliable electrical performance. The dual-ring layout carries dense arrays of gold-plated solder pads designed for direct LED bead mounting, delivering consistent solderability and long-term connection stability.
As a dedicated OEM flexible PCB manufacturer, we tailor ring diameter, pad density, trace routing, and stiffener geometry to your lighting assembly. The terminal integrates a steel stiffener with precision mounting holes to simplify screw fixation and connector welding during final assembly.
Product Highlights
Flexible circuit design that simplifies LED ring assembly while keeping performance consistent.

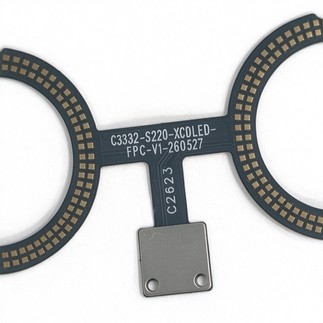

Dual-Ring LED Array
Two concentric rings carry evenly distributed gold-plated pads, optimized for direct LED bead placement and uniform light output.
Ultra-Thin & Bendable
PI-based FPC construction allows the board to flex and conform to curved housings, reducing space and weight in lighting assemblies.
Steel Stiffener Terminal
A reinforced steel stiffener with positioning holes at the cable end supports secure screw mounting and reliable connector soldering.
Black Solder Mask Finish
The matte black solder mask minimizes reflections behind the LEDs and gives the assembled ring a clean, professional appearance.
Specifications
Core parameters of the custom dual-ring LED FPC series.
Frequently Asked Questions
Can the ring diameter and pad count be customized?
Yes. Ring diameter, pad array density, pad size, and overall outline can all be adjusted to match your LED package and mechanical housing requirements.
Is this FPC suitable for continuous flexing or static mounting?
The board is designed primarily for static or low-dynamic mounting inside lighting housings. If repeated flexing is required, please specify bend radius and cycle count so we can adjust copper weight and coverlay accordingly.
Can the stiffener material or mounting-hole pattern be changed?
Yes. The steel stiffener can be redesigned with different thicknesses, hole patterns, or shapes to align with your connector and enclosure screw positions.
Can samples be provided before mass production?
Samples can be produced for LED fit-check, electrical testing, and assembly verification before full production approval.
Need a Custom LED FPC Solution for Your Lighting Project?
Send us your ring dimensions, LED package type, desired pad layout, stiffener requirements, and target quantity. Our engineers will review feasibility and prepare a quotation with DFM feedback.
