Custom Embossed Graphic Overlay with Indicator Windows for Ventilation Control Panels, OEM/ODM Manufacturer

Share
Categories	Graphics Overlay Without a Window
Brand	KeypadOne
Product type	Custom graphic overlay with embossed key and indicator windows
Typical applications	Ventilation fans, heat recovery ventilators and HVAC control panels
Interface layout	INTER., CONT., 60/40/20 min. indicators and embossed VENTILATION key
Material options	Autotype PET, GE PC and customer-specified materials
Surface finish	Matte textured finish; other finishes on request
Customization options	Color, dimensions, shape, window position, embossing, icons and language

Contact Now

Detail Information

Custom Embossed Graphic Overlays for Ventilation Control Panels

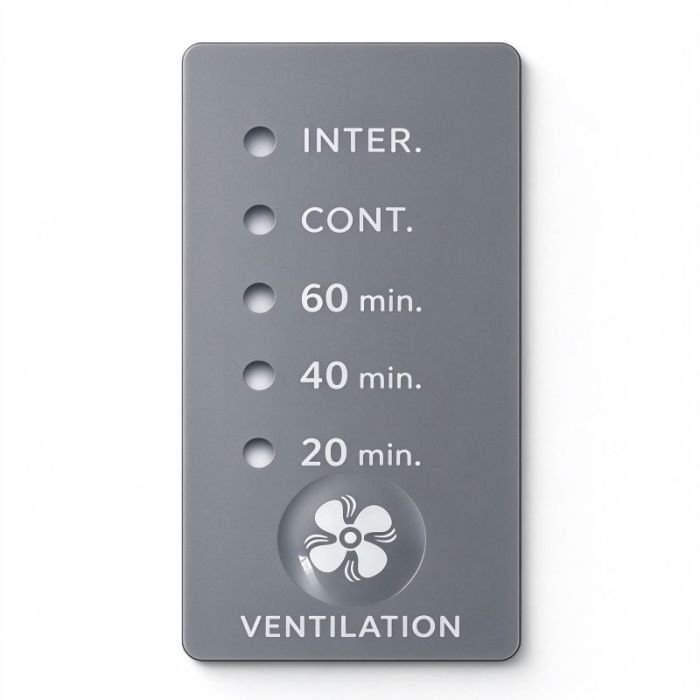

This custom graphic overlay with indicator windows is designed for ventilation fans, heat recovery units and other HVAC control panels. The matte textured surface keeps legends such as INTER., CONT., 60 min., 40 min., 20 min. and VENTILATION crisp and easy to read, while the embossed fan key gives operators a clear tactile target.

As an OEM/ODM graphic overlay manufacturer, we build every overlay to your housing drawing: outline, indicator window positions, embossed key, icons, colors and printed language can all be adapted to your brand and product series. Send us your artwork and we will turn it into a production-ready overlay.

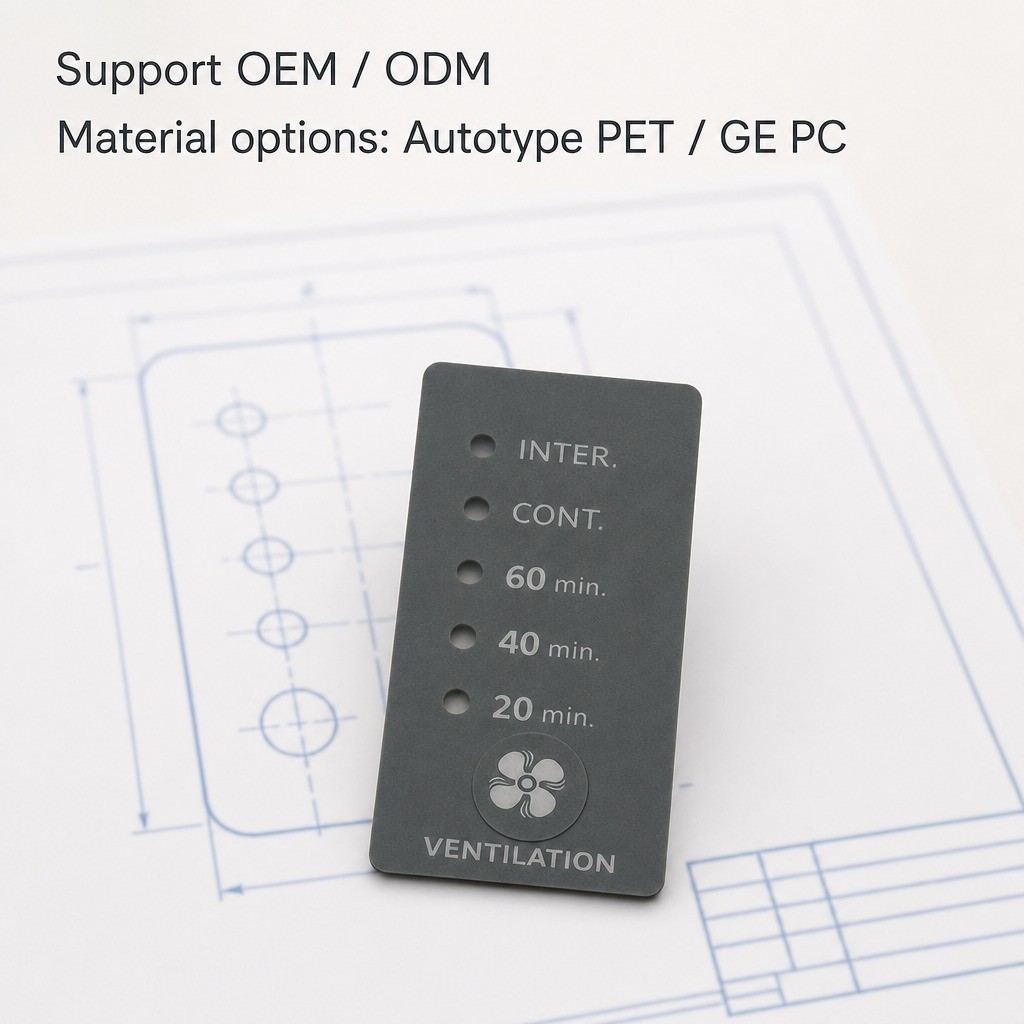

Custom embossed graphic overlay with indicator windows for ventilation fan control panel

Why Customize With Us

Built around your drawing, your brand and your control logic.

Embossed Tactile Key

A raised fan key helps users locate the main function by touch and gives the panel a refined, premium look.

Indicator Windows

Windows are aligned to your LED positions so each operating mode and timer status is shown clearly.

Water-Resistant Surface

The sealed printed surface resists water drops and is easy to wipe clean in humid ventilation environments.

Flexible OEM / ODM

Shape, size, window layout, embossing, colors, icons and language are fully customizable to your drawing.

Specifications

Core parameters of the custom ventilation control graphic overlay.

Product TypeCustom graphic overlay with embossed key and indicator windows

Typical ApplicationsVentilation fans, heat recovery ventilators, exhaust fans and HVAC control panels

Interface LayoutINTER., CONT., 60 / 40 / 20 min. indicators and an embossed VENTILATION key, or your own layout

Material OptionsAutotype PET, GE PC and customer-specified overlay materials

Surface FinishMatte textured finish; other finishes available on request

Key FeaturesEmbossed key, indicator windows, clear legends, water-resistant and easy-to-clean surface

Customization OptionsColor, dimensions, shape, window position, embossing, icons and printed language

Development ServicesOne-stop OEM/ODM support from drawing review to samples and mass production

Frequently Asked Questions

Can the overlay be customized for our ventilation unit?

Yes. Outline, dimensions, indicator window positions, embossed key, icons, colors and printed text are all made according to your drawing and function requirements.

Which materials can you offer?

Autotype PET and GE PC are available, and customer-specified materials can be evaluated according to your application.

Can the colors and surface finish be changed?

Yes. Base color, legend color and surface finish can be adjusted to match your brand style and housing design.

Can samples be provided before mass production?

Samples can be arranged so you can check appearance, dimensions, window alignment and key feel before production approval.

Need a Custom Graphic Overlay for Your Control Panel?

Send us your artwork or housing drawing, overall dimensions, window positions and target application. Our engineers will reply with DFM feedback and a quotation.
