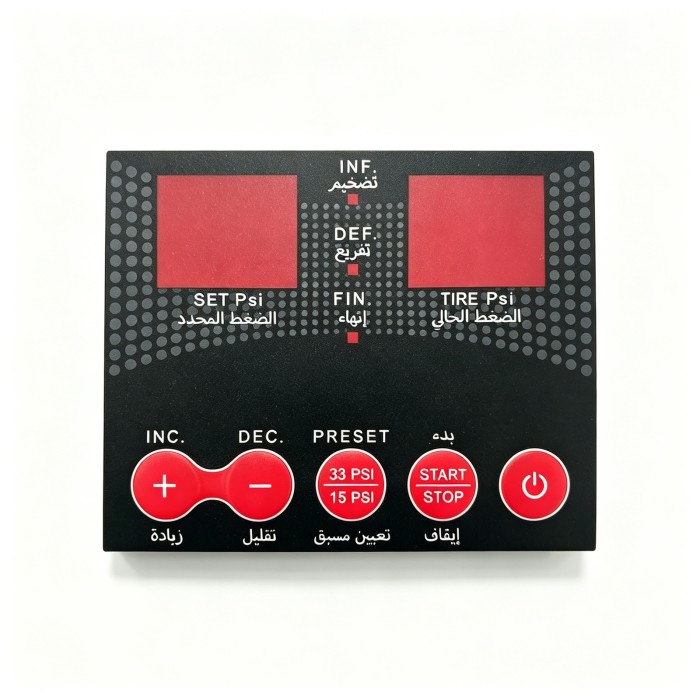

Custom Bilingual Membrane Switch Manufacturer | Red Tactile Metal Dome Keys · Multi-Language Overlay · OEM/ODM for Tire Inflators

Share
Categories	Graphical Overlay with a Window
Brand	KeypadOne
Product type	Custom bilingual membrane switch HMI panel
Key style	Red embossed tactile keys with metal domes
Languages	English and Arabic multi-language graphic overlay
Display windows	Dual LED windows with red diffusion lenses
Circuit	High-conductivity silver-ink circuit with FPC tail
Adhesive	3M VHB high-strength double-sided mounting tape
Protection	IP65 splash-resistant build with nano coating
Applications	Tire inflators, air compressors, workshop equipment
Customization	Size, layout, language, colors, connectors, windows
Compliance	RoHS 10 and REACH SVHC compliant, reports available

Contact Now

Detail Information

Custom Bilingual Membrane Switches for Tire Inflators and Workshop Equipment

This custom membrane switch series is engineered for tire inflators, air compressors and other workshop equipment that needs a rugged, easy-to-read control interface. The bilingual graphic overlay pairs English legends with a second language, dual LED display windows use red diffusion lenses for high-contrast readouts, and embossed red keys sit over metal domes for crisp, repeatable tactile feedback.

As a source membrane switch manufacturer, we support full OEM/ODM customization: overlay graphics, key layout, overall size, silver-ink circuits, FPC tails, connectors and 3M adhesive options are all built to your drawings. Every panel is RoHS 10 and REACH SVHC compliant, and a nano-coated splash-resistant construction keeps the interface reliable in dusty, humid workshop environments.

Bilingual membrane switch installed on a tire inflator in a tire service workshop

Product Highlights

Tactile feedback, bilingual graphics and workshop-grade durability in one custom HMI panel.

Multi-Language Graphic Design

Bilingual and multi-language overlay printing with flexible layouts for text, symbols and display cutouts to match regional markets.

Rugged Tactile Keypad

Custom metal dome keys deliver crisp feedback and long cycle life, optimized for heavy-use automotive and workshop equipment.

Full HMI Custom Integration

Display windows, silver-ink circuits, FPC connectors and 3M adhesive backing tailored to your drawings and mechanical structure.

Harsh Environment Compliance

Matte scratch-resistant overlays withstand dust, moisture and frequent operation, with RoHS and REACH compliance as standard.

Technical Specifications

Product TypeCustom tactile membrane switch / HMI keypad

Overlay MaterialMatte PET / PI film, scratch-resistant, anti-glare

Printing OptionSingle or multi-language custom printing, custom symbols and logos

Key TypeMetal dome tactile keys, non-tactile optional

Circuit MaterialHigh-conductivity silver-ink printed circuit

Display WindowCustom transparent cutout for LCD / LED digital displays

ConnectorCustom FPC flexible cable with customized length

Adhesive3M high-strength pressure-sensitive adhesive, stable mounting

Operating LifeUp to 1,000,000 keystrokes

Environmental PerformanceDustproof, moisture-proof, oil-resistant for workshop equipment

ComplianceRoHS 10 and REACH SVHC compliant, full test reports available

CustomizationSize, shape, graphics, circuit, backlight and structure customizable

Frequently Asked Questions

What files do you need to quote?

2D drawings, dimension information, overlay requirements, circuit and connector specifications. Concept sketches are also acceptable for early design evaluation.

What is your sample lead time?

Prototype samples take 7-12 working days. Mass production lead time depends on order quantity.

Can you provide multi-language printing?

Yes. We support English, Arabic and many other languages for graphic overlay custom printing.

Are your products environmentally compliant?

All products comply with RoHS 10 and REACH SVHC. Test reports can be provided upon request.

Ready to Build Your Custom Membrane Switch?

Send us your overlay artwork or front-panel drawing with overall dimensions, display window openings, circuit and connector requirements. Our engineers will reply with DFM feedback and a quotation.
